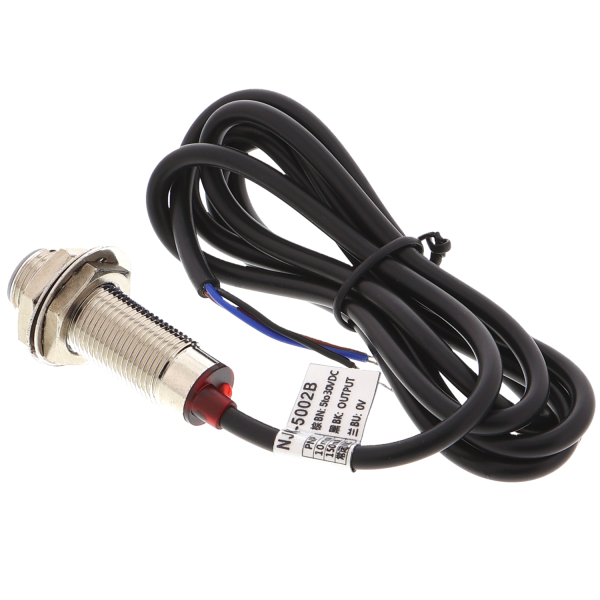

The sensor is used to monitor the position of moving objects. The sensor has a high repeat accuracy thanks to its 1000Hz sampling rate. It is used as an end and base encoder for CNC axes. The sensor requires no adjustment and is easy to install. The sensor is based on a Hall element. Sensor response range 0-10 mm. A red LED is installed at the rear end of the sensor.
Overview:
- Inductive proximity switch
- Model: NJK-5002B / NJK-5002C
- Head diameter: 12mm
- Operating voltage: DC 6-30V
- Number of cables: 3 (black)
- Output type: PNP (NJK-5002B), NPN (NJK-5002C)
- Detection distance: 10mm
Scope of delivery:
- 1x optional NJK-5002B or NJK-5002C - distance sensor, inductive proximity switch
