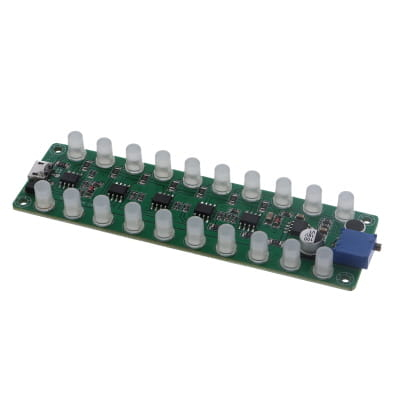

This module is used to dynamically display the music spectrum. The louder the sound, the more the LEDs light up from bottom to top, creating a cool glowing effect.
Completely soldered, this is not a soldering exercise.
The circuit board is equipped with a microphone, so no direct audio connection is required. Switch on the module and it lights up immediately when a sound is heard.
The sensitivity of the audio input can be adjusted using the potentiometer.
Equipped with a reverse polarity protection diode, it effectively prevents the circuit from burning out due to the reverse polarity of the power supply.
Specifications:
- Power supply: DC 5 V ~ 12 V
- Power supply via USB cable possible
- LED type: 5 mm, uniform light, non-dazzling
- Display color: blue
- Power input type: solder pads or micro USB
- Audio input: mono microphone
- Working temperature: -25℃ ~ 85 ℃
- Working humidity: 5% ~ 95% relative humidity
- Size: approx. 100 x 30 x 12 mm
Scope of delivery:
- 1x LED audio level indicator - blue
