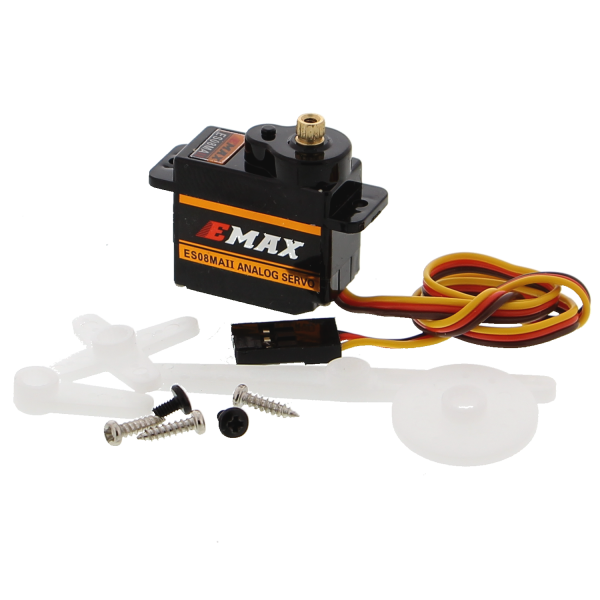

EMAX ES08MA2 / ES08MAII / ES08MA II - Micro RC servo (metal gearbox)

EMAX ES08MA2 / ES08MAII / ES08MA II - Micro RC servo (metal gearbox)

Compact, robust analog servo with metal gearbox - ideal for RC models such as helis, airplanes and light mechanics. Proven alternative to Multiplex NANO-S / NANO-S Pro.

Highlights

• Analog servo (precise, uncomplicated)

• Metal gearbox (durable in everyday use)

• 4.8-6.0 V DC operating voltage

• Futaba/JR compatible plug

• 25 cm connection cable

Technical specifications

• Control: analog

• Gearbox: metal

• Operating voltage: 4.8-6.0 V DC

• Rotation speed:

  • 0.12 s / 60° @ 4.8 V

  • 0.10 s / 60° @ 6.0 V

• Torque:

  • 1.6 kg (manufacturer's specification) @ 4.8 V

  • 2.0 kg (manufacturer's specification) @ 6.0 V

• Cable length: 25 cm

• Plug type: Futaba/JR compatible

Variant note: Normal vs. reverse

Normal and Reverse are not "two different servos" in terms of performance or quality. The technology, data and dimensions are identical.
The only difference is the direction of rotation with the same control signal:

• Normal: Standard direction of rotation, CCW (counter-clockwise)

• Reverse: Direction of rotation is internally mirrored, CW (clockwise)

If two servos are installed as mirror images and receive the same signal (e.g. via Y-cable / same channel), the Normal + Reverse combination ensures that both sides run symmetrically and correctly, without additional electronics or transmitter/controller reversal.
In many setups, the direction can alternatively be changed via servo reverse in the transmitter/controller.

Ideal for

• RC helis, RC airplanes

• Ailerons/flaps with mirror-image installation

• lightweight mechanics/models where metal gears are required

Scope of delivery

• 1× EMAX ES08MA2 / ES08MAII / ES08MA II servo (CW or CCW depending on variant selection)

• 4× control horns + retaining screws
