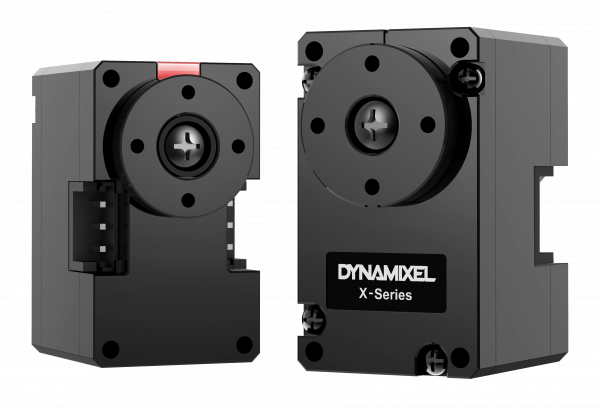

DYNAMIXEL XC330-T288-T

General

The Dynamixel X series is currently the latest network servo motor series from ROBOTIS. The XC330-T288-T servo motor has contactless magnetic encoders, enabling 360° rotations at a speed of up to 65 rpm. Torques of up to 92N.m are possible with an applied voltage of 12V. These outstanding performance features, coupled with the extremely low weight of just 65g, result in a very powerful servo motor for universal applications.

Cable routing

In addition, the cable routing of the Dynamixel X series has been fundamentally revised, resulting in even greater reliability. The cables are no longer connected to the rear of the servo motor, as is usual with the AX/MX series, but are routed past the pivot and pivot points, which puts less strain on the cables and minimizes exposed cables.

Screw connection

The screw connection of the Dynamixel X series can be carried out in different ways. However, when using mounting profiles, it is important to ensure that the spacer rings included in the scope of delivery are used.

Technical data

• Servo motor: DYNAMIXEL XC330-T288-T
• Weight: 23g
• Dimensions: 20 x 34 x 26 mm
• Gear reduction ratio: 18.62:1
• Torque: 5V 0.92 N.m
• RPM: 5V 65
• Internal uC: ARM CORTEX-M0+ (64 [MHz], 32Bit)
• Encoder: Contactless magnetic encoder
• Positioning accuracy: 0.088° x 4069 steps
• Operating voltage: 3.7 - 6V recommended: 5V
• Protocol: Half Duplex TTL
• ID: 0 - 253
• Baud rate: 9600 bps - 4Mpbs

Scope of delivery

• 1 x DYNAMIXEL XC330-T288-T
• 1 x servo horn (HN11-N101)
• 1 x X3P data and power cable
• 5 x spacer rings
• Various screws and nuts
