General
ROBOTIS is a well-known manufacturer of robotics development platforms and components. This company also manufactures industrial quality servo motors and interfaces under the name DYNAMIXEL. The MX-106R servo motors are equipped with an integrated reduction ratio of 225:1, a controller with feedback and driver. In combination with the RS485 interface, the servos can be controlled very precisely and also provide the control unit with feedback on the current position at all times. The maximum resolution (position accuracy) is 0.088°. As each servo can be assigned a unique ID, the servos can be connected in series (one behind the other, as shown below), thus reducing wiring to a minimum.
Technical data
Below are some technical data for the DYNAMIXEL MX-106R servo .
- Weight: 165g (per servo)
- Dimensions: 40.2 x 65.1 x 46mm
- Resolution: 0.088°
- Reduction ratio: 225:1
- Holding torque: up to 10 Nm
- Angle: 0 - 360° / Adjustable continuous rotation
- Operating temperature: -5° + 80°C
- Voltage: 10 - 14.8V (recommended voltage: 12V)
- Data transmission: RS485 / 7343bps ~ 4.5 Mbps
- Motor from Maxon
- ID allocation up to 253
Scope of delivery

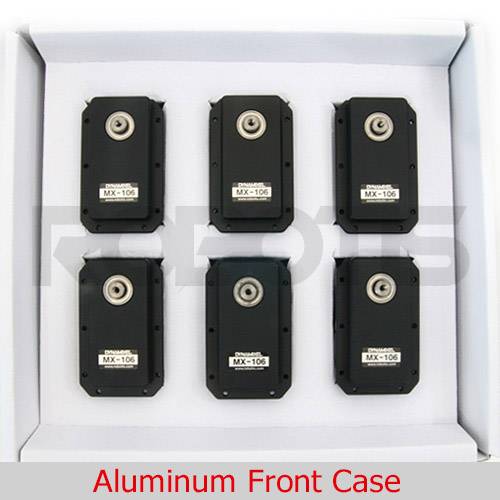

- 6 x DYNAMIXEL MX-106R servo motors
