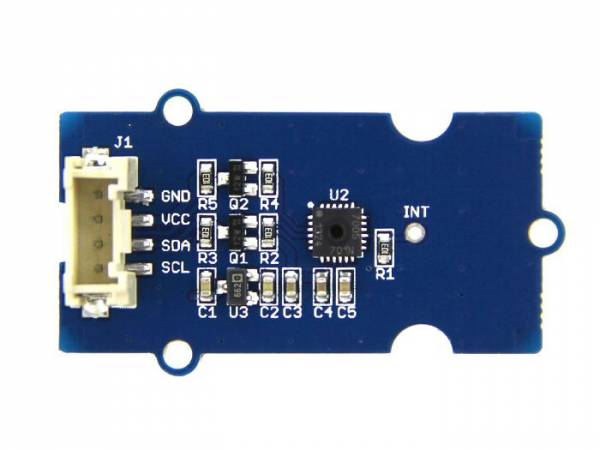

Grove - Temperature and humidity sensor (high accuracy and small size) v1.0
The temperature and humidity sensor from Grove is based on the TH02, which is characterized by its high accuracy and small size. This multifunctional sensor provides information on temperature and relative humidity.
Features
- Low power consumption: 350 µA during RH conversion
- High accuracy: humidity: ±4.5 % RH and temperature: ±0.5 °C
- Grove unit socket: The product ensures "plug and play" and can be used in a variety of applications.
Applications
- Industrial HVAC/R
- Thermostats/Hygrostats
- Micro-environments/data centers
- Weather stations
- Automatic control
- Test and inspection equipment
Specifications
|
Specification |
Value range |
|
Operating voltage range |
3.3 V ~ 5 V |
|
Power consumption |
350 µA during RH conversion |
|
RH operating range |
0 to 100 % |
|
Humidity measuring range |
0 % - 80 % relative humidity |
|
Temperature range |
0 ~ 70 °C |
|
Humidity accuracy |
±4.5 % relative humidity |
|
Temperature accuracy |
±0,5°C |
Technical details
- Packaging dimensions: 90 mm x 60 mm x 10 mm

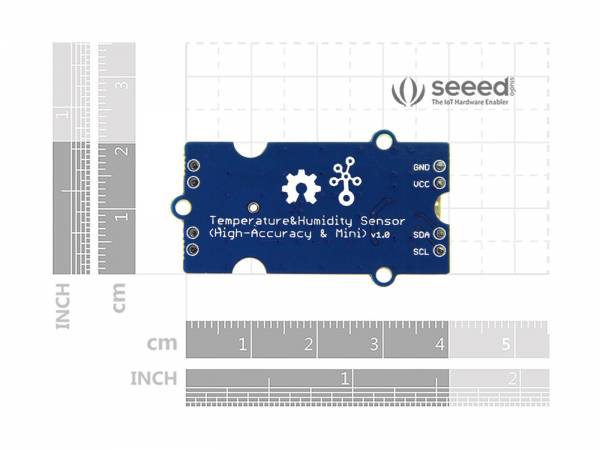

- Size: 40 mm x 20 mm
- Weight: 9g
What is Grove?
Grove facilitates connection, experimentation and simplifies the prototyping process. No jumpers or soldering are required. More than 300 Grove modules have been developed to cover a wide range of applications and fulfill a variety of requirements. Not only the hardware is open source, but also the software. Instructional PDF documents and a wiki are provided for Grove users (especially beginners).
We offer various Grove Shields to enable connection to the Grove system with various microcontrollers.
Parts list
- 1x Grove - Temperature and humidity sensorv 1.0
- 1x Grove cable
