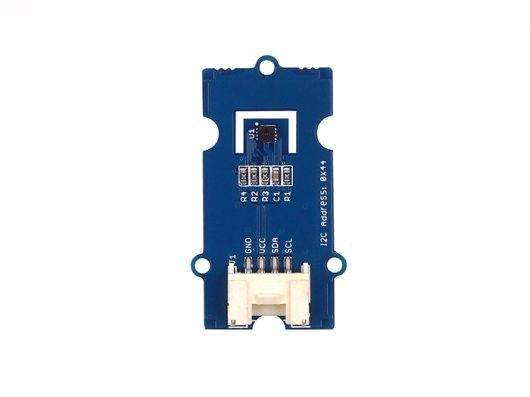

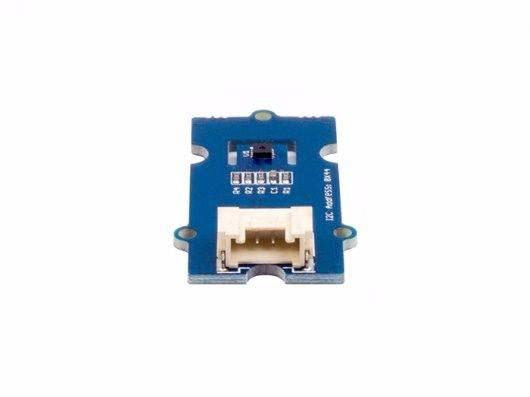

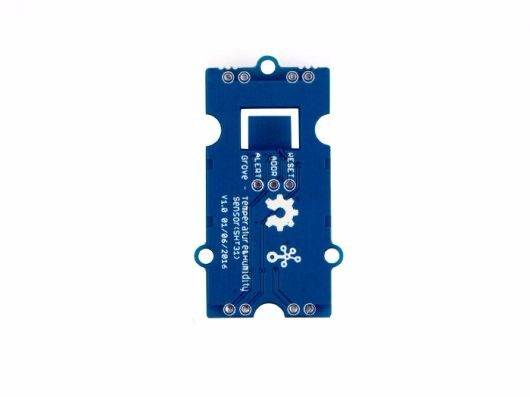

Grove - Temperature & Humidity Sensor (SHT31)

Grove - Temperature and humidity sensor (SHT31)

Measures temperature and humidity with high accuracy ±2 % RH and ±0.3 °C respectively. Based on the Sensirion SHT3x-DIS sensor and offers exceptional intelligence, reliability and improved accuracy.

You can use the sensor in extreme conditions such as -40 degrees or 125 °C and still maintain an accuracy of ±0.3 degrees. It also has an alarm mode that allows you to monitor environmental conditions (humidity and temperature) relative to programmable limits.

Ideal for industrial automation, smart home systems, etc.

Features

• High accuracy: ±2 % RH or ±0.3 °C
• Fast data transmission: I2C interface up to 1 MHz
• Optimized performance: Calibrated, linearized and temperature compensated digital output
• Wide compatibility: Operation with 2.15 V to 5.5 V
• Versatile connectivity: Grove interface for easy "plug and play"

Applications:

• Medical use
• Home/outdoor environment
• Automotive
• Food processing
• Industrial freezers and refrigerators

Technical details

• Dimensions: 89 mm x 140 mm x 7.5 mm
• Weight: 10g
• Supply voltage: 5V or 3.3V
• Current consumption: 100 uA
• Temperature measurement: -40°C to 125°C, accuracy ±0.3°C
• Humidity accuracy: ±2%
• Communication interface: I2C

What is Grove?

Grove facilitates connection, experimentation and simplifies the prototyping process. No jumpers or soldering are required. More than 300 Grove modules have been developed to cover a wide range of applications and fulfill a variety of requirements. Not only the hardware is open source, but also the software. We offer different Grove Shields to connect to the Grove system with various microcontrollers.

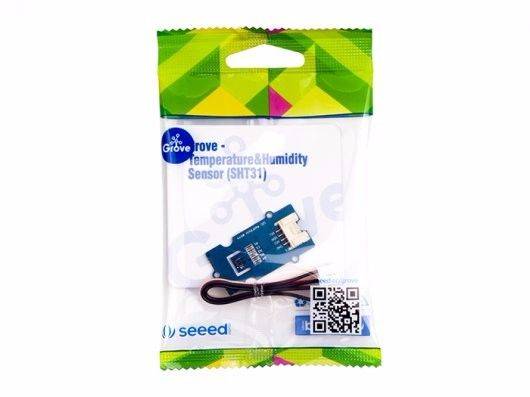

Parts list

• Grove temperature and humidity sensor (SHT31): 1

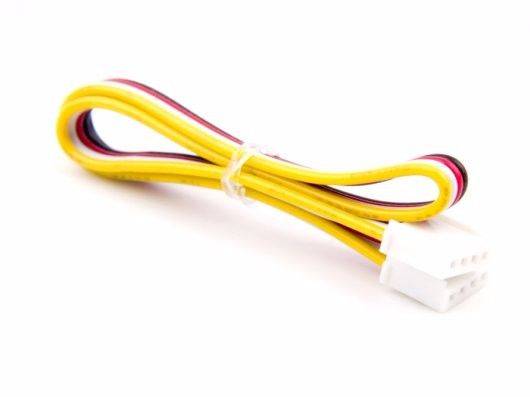

• Grove cable: 1
