Grove - Sensore a tempo di volo (VL53L0X)
Prezzi incl. IVA più spese di spedizione
Tempi di consegna: approssimativo 1-3 Giorni
- Numero d'ordine: F23106108
- Peso: 0,01 kg
- Dimensioni dell'imballaggio: 2 cm x 2 cm x 1 cm (L x A x A)

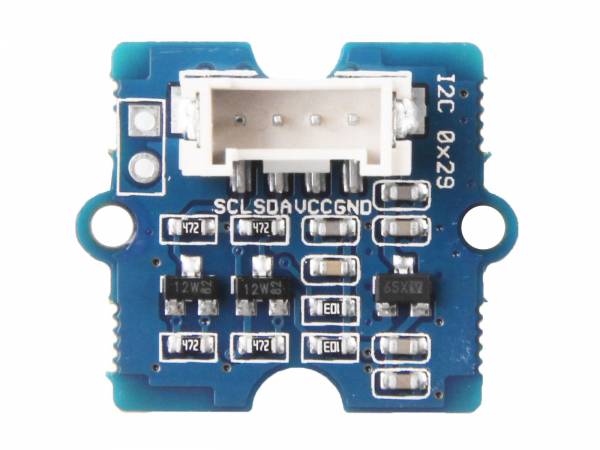

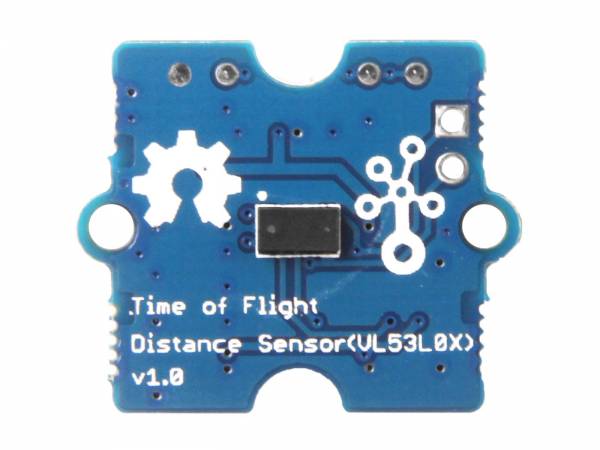

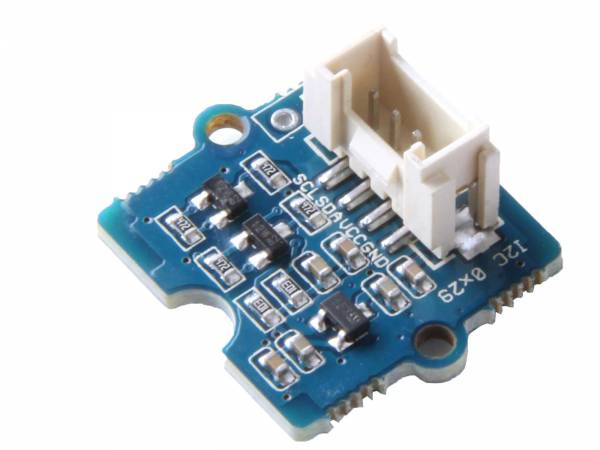

Grove - Sensore a tempo di volo (VL53L0X)
Il sensore Grove - Time-of-Flight Sensor (VL53L0X) è un sensore di distanza ad alta velocità, alta precisione e lunga distanza basato sul VL53L0X. Permette di effettuare misurazioni accurate indipendentemente dai riflessi, integra l'array SPAD e la tecnologia brevettata Flight SenseTM.
L'emettitore VCSEL (Vertical-Cavity Surface-Emitting Laser) da 940 nm del VL53L0X è completamente invisibile all'occhio umano. In combinazione con i filtri fisici interni a infrarossi, consente di ottenere distanze maggiori, una maggiore immunità alla luce ambientale e una migliore robustezza della copertura in vetro contro la diafonia ottica.
Caratteristiche
- Modulo miniaturizzato completamente integrato
- laser VCSEL da 940 nm
- Microcontrollore avanzato incorporato
- Misura un campo assoluto fino a 2 m
- Compensazione della diafonia ottica per la selezione del vetro di copertura
- Dispositivo laser di classe 1 sicuro per gli occhi
- Facile integrazione con interfaccia I2C
Applicazioni
- Rilevamento degli utenti per PC/laptop/tablet e IoT
- Rilevamento di ostacoli con i robot
- Rilevamento delle mani in rubinetti automatici, distributori di sapone, ecc.
- riconoscimento dei gesti 1D
- Messa a fuoco automatica assistita da laser per le telecamere
Specifiche della telecamera
Dimensioni | 20 mm x 20 mm x 11 mm |
Peso | 7,8g |
Tensione di funzionamento | 3,3 V/5 V |
Temperatura di funzionamento | -20℃ - 70℃ |
Distanza di misurazione consigliata | 30mm-1000mm |
Risoluzione | 1 mm |
Emettitore a infrarossi | 940 nm |
Indirizzo IIC standard | 0x52 |
Che cos'è Grove?
Grove facilita la connessione, la sperimentazione e semplifica il processo di prototipazione. Non sono necessari ponticelli o saldature. Sono stati sviluppati più di 300 moduli Grove per coprire un'ampia gamma di applicazioni e soddisfare una varietà di requisiti. Non solo l'hardware è open source, ma anche il software. Offriamo diversi Grove Shield per consentire la connessione al sistema Grove con diversi microcontrollori.

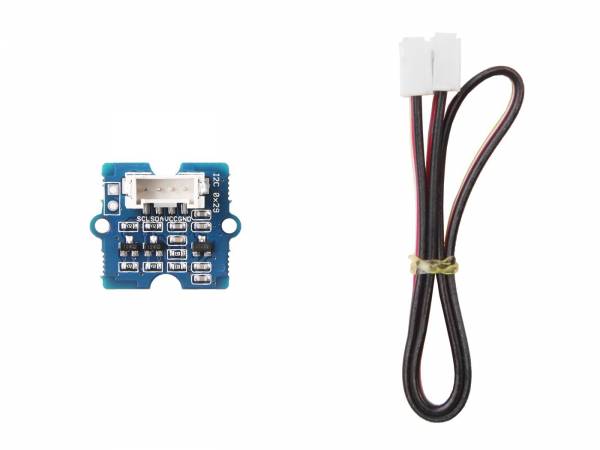

Elenco delle parti
- 1x sensore di distanza a tempo di volo Grove (VL53L0X)
- 1x cavo Grove
